There is a yet another way to look at systems of linear equations. Suppose that we want to find all solutions of the following system of linear equations
where A is an m by n matrix of coefficients and b is the column of right
sides. For every n-vector v we can get an m-vector Av.
Our goal is to find
all n-vectors v such that this m-vector is b.
Thus we have a function which takes any vector
v from R^{n} to the vector Av from R^{m} and our goal is to find all values
of the argument of this function for which the function has a particular
value.
A function from
R^{n} to R^{m} which takes every n-vector v to the m-vector
Av where A is a m by n matrix, is called a linear transformation.
The matrix A is called the standard matrix
of this transformation. If n=m then the transformation
is called a
linear operator of the vector space R^{n}.
Notice that by the definition the linear transformation with a standard matrix A takes every vector
from R^{n} to the vector
from R^{m} where A(i,j) are the entries of A.
Conversely, every transformation from R^{n} to R^{m} given by a formula of this
kind is a linear transformation and the coefficients A(i,j) form the standard
matrix of this transformation.
Examples. 1. Consider the transformation of R^{2} which takes
each vector (a,b) to the opposite vector (-a,-b). This is a linear operator
with standard matrix
[ -1 | 0 ] |
[ 0 | -1 ] |
2. More generally, the dilation operator is the linear operator from R^{n} to R^{n} which takes every vector
to
where k is a constant.
3. If we take a vector (x,y) in R^{2} and reflect it about the x-axis, we get vector (x,-y). Clearly, this reflection is a linear operator. Its standard matrix is
[ 1 | 0 ] |
[ 0 | -1 ] |
4. If we project a vector (x,y) on the x-axis, we get vector (x,0). This projection is also a linear operator. Its standard matrix is
[ 1 | 0 ] |
[ 0 | 0 ] |
5. If we rotate a vector (x,y) through 90 degrees counterclockwise, we get vector (-y, x). This rotation is a linear operator with standard matrix
[ 0 | -1 ] |
[ 1 | 0 ] |
We shall prove that reflections about arbitrary lines, projections on
arbitrary axes, and rotations through arbitrary angles in R^{2} are linear
operators. In order to do this we need the following simple
characterization of linear transformations from R^{n} to R^{n}.
Theorem. A function T from R^{n} to R^{m} is
a linear transformation if and only if it satisfies the following two
properties:
This proof shows that if T is a linear transformation, V_{i} (I=1,...,n)
is the vector with I-th coordinate 1 and other coordinates 0, then
T(V_{i}) is the I-th column in the standard matrix of T.
This provides us with
a way to find the standard matrix of a linear transformation.
Notice that in R^{3}, vectors V_{1}, V_{2}, V_{3} are the basic vectors i, j, k. So we shall call V_{i} the
basic vectors in R^{n}. We shall give a general definition of bases
in R^{n} and other vector spaces later.
As a corollary of the characterization of linear transformations from
R^{m} to R^{n} we can deduce the following statement.
Corollary. Every linear transformation T from R^{m} to R^{n}
takes 0 of R^{m} to 0 of R^{n}.
Indeed, take k=0 and an arbitrary vector A then
Here we used the second condition of the characterization.
Example 1. Projection on an arbitrary line in R^{2}.
Let L be an arbitrary line in R^{2}. Let T_{L} be the transformation of R^{2} which
takes every 2-vector to its projection on L. It is clear that
the projection of the sum of two vectors is the sum of the projections of these
vectors. If we multiply a vector by a scalar then its projection will also
be multiplied by this scalar. Thus by the characterization of linear transformations, T_{L} is a linear operator on R^{2}.
From this, we can deduce that
So
Therefore the standard matrix of the projection is
1/(k^{2}+1) | [ 1 | k ] |
[ k | k^{2} ] |

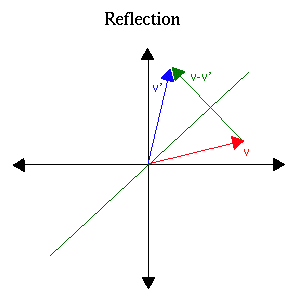

Example 2. Reflection about an arbitrary line.
This gives us the standard matrix of the reflection:
1/(k^{2}+1) | [ 1-k^{2} | 2k ] |
[ 2k | k^{2}-1 ] |
Example 3. Rotation through angle a
[ cos(a) | -sin(a) ] |
[ sin(a) | cos(a) ] |
Notice that the rotation clockwise by angle a has the following matrix:
[ cos(a) | sin (a) ] |
[ -sin(a) | cos(a) ] |
because it is equal to the rotation
counterclockwise through the angle -a.
Suppose that T is a linear transformation from R^{m} to R^{n} with standard
matrix A and S is a
linear transformation from R^{n} to R^{k} with standard matrix B. Then we can
compose or multiply
these two transformations and create a new
transformation ST which takes vectors from R^{m} to R^{k}. This transformation
first applies T and then S. Not any two transformations can be multiplied:
the transformation S must start where T ends. But any two linear operators
in R^{n} (that is linear transformations from R^{n} to R^{n}) can be multiplied.
Notice that if v is a vector in R^{n} then
by the definition of the
standard matrix of a linear transformation. Then
Thus the product ST is a linear transformation and the standard matrix ST is the product of standard matrices BA.
Example 1. Suppose that T and S are rotations in R^{2},
T rotates through angle a and S rotates through angle b (all rotations
are counterclockwise). Then
ST is of course the rotation through angle a+b. The standard matrix
of T is
[ cos(a) | -sin(a) ] |
[ sin(a) | cos(a) ] |
[ cos(b) | -sin(b) ] |
[ sin(b) | cos(b) ] |
[ cos(a)cos(b)-sin(a)sin(b) | -cos(a)sin(b)-sin(a)cos(b) ] |
[ cos(a)sin(b)+sin(a)cos(b) | cos(a)cos(b)-sin(a)sin(b) ] |
[ cos(a+b) | -sin(a+b) ] |
[ sin(a+b) | cos(a+b) ] |

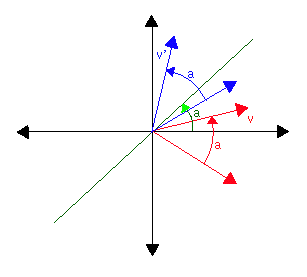

Thus we could find the standard matrix of the reflection about the line L
by multiplying the standard matrices of these three transformations.
Similarly, the projection on L can be decomposed into a product of three
operators:
We can also multiply a linear transformation by a scalar. If k is a number
and T is a linear transformation from R^{m} to R^{n} then kT is a function from
R^{m} to R^{n} which takes every vector V from R^{m} to kT(V). It is
easy to see that the standard matrix of kT is kA.
Summarizing the properties of linear transformations from R^{m} to R^{n} that
we have obtained so far, we can formulate the following theorem.
Theorem. 1. The product ST of
a linear transformation T from R^{m} to R^{n} and a linear transformation S
from R^{n} to R^{k} is a linear transformation from R^{m} to R^{k}
and the standard matrix
of ST is equal to the product of standard matrices of S and T.
2. If T and S are linear transformations from R^{m} to R^{n} then T+S is
again a
linear transformation from R^{m} to R^{n} and the standard matrix of
this transformation is equal to the sum of standard matrices of T and S.
3. If T is a linear transformation from R^{m} to R^{n} and k is a scalar then
kT is again a
linear transformation from R^{m} to R^{n} and the standard matrix of
this transformation is equal to k times the standard matrix of T.
By definition, the identity
function from R^{n} to R^{n}
is the function which takes every vector to itself. It is clear that the identity function is a linear operator whose standard matrix is the identity matrix.
Let us denote the identity operator by Id.
A linear operator T in R^{n} is called invertible if there exists another linear operator S in R^{n} such that TS=ST=Id. In this case S is called the inverse of T. By definition S undoes what T does, that is if T takes V to W then S must take W to V (otherwise ST would not be the identity operator). If A is the standard matrix of T and B is the standard matrix of S then ST has standard matrix BA. So if S is the inverse of T then BA=I. Conversely, if BA=I then the linear operator S with standard matrix B is the inverse of T because ST is the linear operator whose standard matrix is I. Thus we can conclude that the following statement is true.
Theorem. A linear operator T in R^{n} is invertible if and only if its standard matrix is invertible. If A is the standard matrix of T then A^{-1} is the standard matrix of T^{-1}.
Example 1. The reflection about a line in R^{2} is invertible
and the inverse of a reflection is the reflection itself (indeed, if we apply the reflection to a vector twice, we do not change the vector).
Example 2. The rotation through angle a is invertible and the inverse is the rotation through angle -a.
Example 3. The projection on a line in R^{2} is not invertible because there are many vectors taken by the projection to the same vector, so we cannot uniquely reconstruct a vector by its image under the projection.
Our next goal is to consider properties of invertible linear operators.
First let us recall some properties of invertible maps (functions). Let
T be a map from set X into set Y. We say that T is
injective or one to one
if T maps different elements to different elements, that is if
T(u)=T(v) then necessarily u=v. We
call T surjective
or onto if every element in Y is an image of some element in
X that is for every y in Y there exists an x in X such that T(x)=y.
A function T from X to X is called invertible if
there exists another function S from X to X such that TS=ST=Id, the identity
function (that is if T takes x to y then S must take y to x). It is easy to see
that T is invertible if and only if it is injective and surjective.
There exist functions which are non-injective and non-surjective
(the function T(x)=x^{2} from R to R), non-injective and surjective (say,
T(x)=x^{3}-x
from R to R), injective and non-surjective (say, T(x)=arctan(x) from R to R),
injective
and surjective (any invertible function, say T(x)=x^{3} from R to R).
Thus the following theorem about linear operators is very surprising.
Theorem. For every linear operator T in R^{n} with standard matrix A the following conditions are equivalent:
Let V and W be arbitrary vector spaces. A map T from V to W is called a linear transformation if
In
the particular case when V=W, T is called a linear operator in V.
We have seen (see the characterization
of linear transformations from R^{m} to R^{n}) that linear transformations from
R^{m} to R^{n} are precisely the maps which satisfy these conditions. Therefore in
the case of vector spaces of n-vectors this definition is equivalent to the
original definition. Other vector spaces give us more examples of natural
linear transformations.
Positive examples.1. Let V be the set of all polynomials in one
variable. We shall see later that V is a vector space with the natural
addition and scalar multiplication (it is not difficult to show it directly).
The map which takes each polynomial to its derivative is a linear
operator in V as easily follows from the properties of derivative:
2. Let C[0,1] be the vector space of all continuous functions on the interval
[0,1]. Then the map which takes every function S(x) from C[0,1] to the
function h(x) which is equal to the integral from 0 to x of S(t) is a linear
operator in C[0,1] as follows from the properties of integrals.
3. The map from C[0,1] to R which takes every function S(x) to the number
S(1/3) is a linear transformation (1/3 can be replaced by any number between
0
and 1):
4. The map from the vector space of all complex numbers C to itself
which
takes every complex number a+bi to its imaginary part bi is a linear operator
(check!).
5. The map from the vector space of all n by n matrices (n is fixed) to
R which takes every matrix A to its (1,1)-entry A(1,1) is a linear
transformation (check!).
6. The map from the vector space of all n by n matrices to R which takes
every matrix A to its trace trace(A) is a linear transformation (check!).
7. The map from an arbitrary vector space V to an arbitrary vector space W
which takes every vector v from V to 0 is a linear transformation (check!).
This transformation is called the null
transformation
8. The map from an arbitrary vector space V to V which takes every vector to itself (the identity map) is a linear operator (check!). It is called the identity operator, denoted I.
Negative examples. 1. The map T from which takes every
function
S(x) from C[0,1] to the function S(x)+1 is not a linear transformation
because if we take k=0, S(x)=x then the image of kT(x) (=0) is the constant
function 1 and k times the image of T(x) is the constant function 0. So the
second property of linear transformations does not hold.
2. The map T from the vector space of complex numbers C to R which takes
every complex number a+bi to its norm sqrt(a^{2}+b^{2}) is not a linear
transformation because if we take A=3 and B=4i then T(A+B)=||3+4i||=5
and T(A)+T(B)=3+4=7, so T(A+B) is not equal to T(A)+T(B), so the first property
of linear transformations does not hold.
The following theorem contains some important properties of linear
transformations (compare with the corollary from the
characterization T linear transformations from R^{m} to R^{n} and
the theorem about products, sums and scalar
multiples of linear transformations).
Theorem. 1. If T is a linear transformation
from V to W then T(0)=0.
2. If T is a linear transformation from V to W and S is a linear
transformation from W to Y (V, W, Y are vector spaces)
then the product (composition) ST is a linear
transformation from V to Y.
3. If T and S are linear transformations from V to W (V and W are vector
spaces) then the sum T+S
which takes every vector A in V to the sum
T(A)+S(A) in W is again a linear transformation from V to W.
4. If T is a linear transformation from V to W and k is a scalar then the
map kT which takes every vector A in V to k times T(A) is again a linear
transformation from V to W.
The proof is left as an exercise.
Some properties of linear transformations, which hold for linear
transformations from R^{m} to R^{n}, do not hold for arbitrary vector spaces.
For example let P be the vector space of all polynomials.
Let T be the
linear operator which takes every polynomial to its derivative. Then T is
surjective because every polynomial is a derivative of some other polynomial
(anti-derivatives of a polynomial are polynomials). But T is not injective
because the images of x^{2} and x^{2}+1 are the same (2x).
Recall that for linear transformations from R^{m} to R^{n} injectiveness and
surjectiveness are equivalent.
Notice that since the operator T is not injective, it cannot have an
inverse. But let S be the operator on the same space
which takes every polynomial to its anti-derivative int(p(t), t=0..x).
Then for every polynomial p we have: TS(p)=p (the derivative of the
anti-derivative of a function is the function itself). Thus TS=I. On the other
hand ST is not equal to I, for, say if p=x+1 then T(p)=1, ST(p)=x, so ST(p)
is not equal to p.
For linear operators in R^{m}, this cannot happen. Indeed, if TS=I
then the product of standard matrices of T and S is I.
So the standard matrix
A of T is invertible, and the standard matrix B of S is
the inverse of A. Hence S is the inverse of T and ST=I.
The proof in the last paragraph does not have references to the results that we used. Find these references!
